EPP/EPS Carbon loaded polystyrene absorber

Brand Name : LP

Model Number : LPEPP/LPEPS

Certification : CE ROHS

Place of Origin : CHINA

Contact Now

LPEPS is carbon and retardant chemicals loaded solid expanded polystyrene absorbers, it’s designed optimized return loss performance.

Features:

  • Made by mould, perfect uniform and precise fit every time
  • Excellent anechoic performance
  • Easy to install and the ‘plug-in’ pyramids can be changed in seconds if damaged
  • No reflective edges as the bases interlock providing 100% coverage
  • Fire retardant to UL94 HBF, DIN4102-B2, EN11925
  • RoHS and REACH compliant
  • Closecell structure, more stable performance and non-hygroscopic
  • Zero shedding(clean room class ISO14644-1 class 4)
  • Re-usable without damage
  • Longer service life expectancy (25 years +)
  • High wear resistance (important doors and access panels)

LPEPS are specifically designed for use in:

  • EMC Chambers
  • Antenna measurement chambers
  • Mil Std 461 military product test chambers
  • Radar cross section RCS chambers
  • Other applications where radio wave/microwave absorbing is required

Item No.

Base size

(mm×mm)

Pyramidal Qty/

pcs

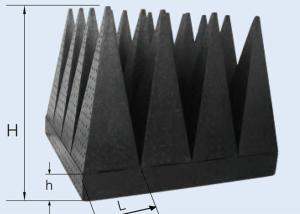

Pyramidal size H×L×h

(mm×mm×mm)

Standard Weight

(kg/㎡)
LPEPS-P300E 600×600 36 300×100×60 2
LPEPS-P500E 600×600 16 500×145×75 3
LPEPS-P700E 600×600 9 500×195×130 4.5

Reflection Loss under Normal Incidence(-dB)

Power Handling

kW/㎡
Item No. 0.03 0.08 0.3 0.5 1 3 6 10 18
(GHz) (GHz) (GHz) (GHz) (GHz) (GHz) (GHz) (GHz) (GHz)
LPEPS-P300E 11 23 17 18 17 20 20 21 25 1
LPEPS-P500E 14 26 20 20 19 20 21 25 28 1
LPEPS-P700E 17 27 23 21 20 20 23 25 30 1
