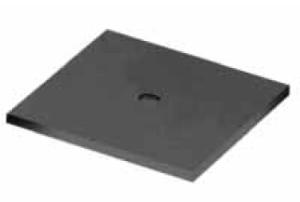

EMC Chamber dedicated ferrite tile（LPF）

Name: EMC Chamber dedicated ferrite tileLPF
Brand: LOPU
Price: 1 USD

Place of Origin : Nanjing, China

Brand Name : LOPU

Model Number : LPF

Certification : CE ROHS

Packaging Details : CARTON

Delivery Time : 30 DYAYS

Payment Terms : T/T

Supply Ability : 10000 SQM PER YEAR

MOQ : 1 SQM

Contact Now

EMC chamber dedicated ferrite tile fabricated with traditional ceramic manufacture process, there are usually MnZn and NiZn two systems, through the composition and process control, it can make the absorption peak to move to the required frequency point. Ferrite tile generally use below 1 GHZ frequency, according to its characteristic, it can get broadband performance matching polyurethane foam or flame retardant high power absorbing material.

Product spec. And performance

Model	Thickness mm	Weight Kg/m2	Vertical incidence reflectivity max.(－dB)
Model	Thickness mm	Weight Kg/m2	30MHz	100MHz	200MHz	300MHz	500MHz	700MHz	1GHz
LPF-60N	6.7	34	15	25	35	25	20	15	12
LPF-60M	6.7	33	27	38	25	17	15	12	10
